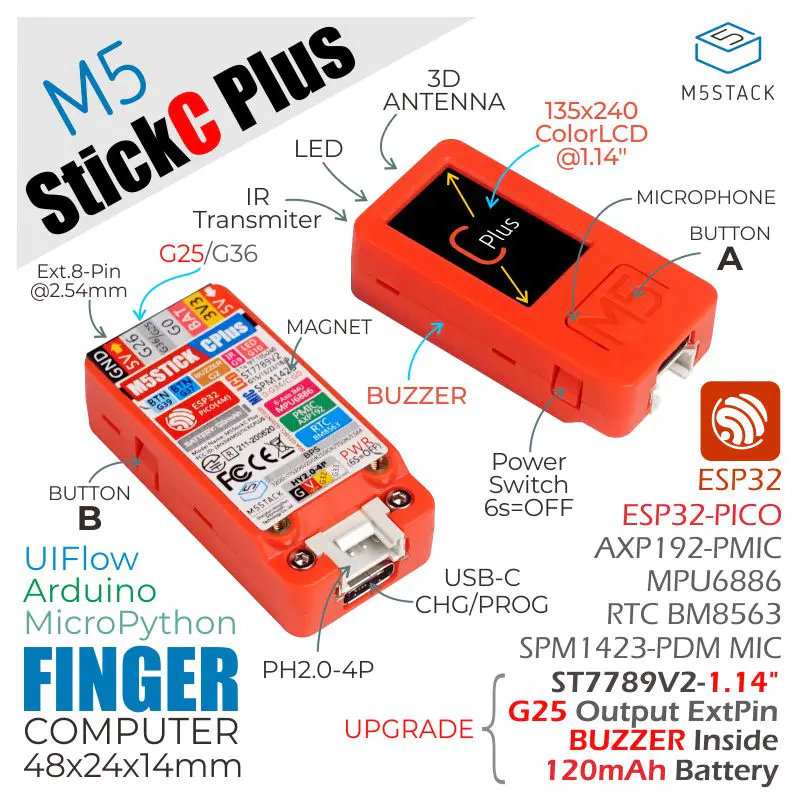

M5StickC plus
Specifiche
| Risorse | Parametri |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| LCD screen | 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2 |
| Button | Custom button x 2 |
| LED | RED LED |
| MEMS | MPU6886 |
| Buzzer | built-in buzzer |
| IR | Infrared transmission |
| MIC | SPM1423 |
| RTC | BM8563 |
| PMU | AXP192 |
| Battery | 120 mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| PIN port | G0, G25/G36, G26, G32, G33 |
| Operating Temperature | 0°C to 60°C |
| Net weight | 15g |
| Gross weight | 21g |
| Product Size | 48.2*25.5*13.7mm |
| Package Size | 65*25*15mm |
| Case Material | Plastic ( PC ) |
RED LED & IR Transmitter & BUTTON A & BUTTON B
| ESP32 | GPIO10 | GPIO9 | GPIO37 | GPIO39 | GPIO2 |
|---|---|---|---|---|---|
| RED LED | LED Pin | ||||
| IR Transmitter | Transmitter Pin | ||||
| BUTTON A | Button Pin | ||||
| BUTTON B | Button Pin | ||||
| Buzzer | Buzzer Pin |
TFT LCD
Driver IC：ST7789v2
Resolution：135 * 240
| ESP32 | GPIO15 | GPIO13 | GPIO23 | GPIO18 | GPIO5 |
|---|---|---|---|---|---|
| TFT LCD | TFT_MOSI | TFT_CLK | TFT_DC | TFT_RST | TFT_CS |
GROVE PORT
| ESP32 | GPIO33 | GPIO32 | 5V | GND |
|---|---|---|---|---|
| GROVE port | SCL | SDA | 5V | GND |
MIC (SPM1423)
| ESP32 | GPIO0 | GPIO34 |
|---|---|---|
| MICPHONE | CLK | DATA |
6-Axis posture sensor (MPU6886) & power management IC (AXP192)
| ESP32 | GPIO22 | GPIO21 |
|---|---|---|
| 6-Axis IMU sensor | SCL | SDA |
| Power management IC | SCL | SDA |

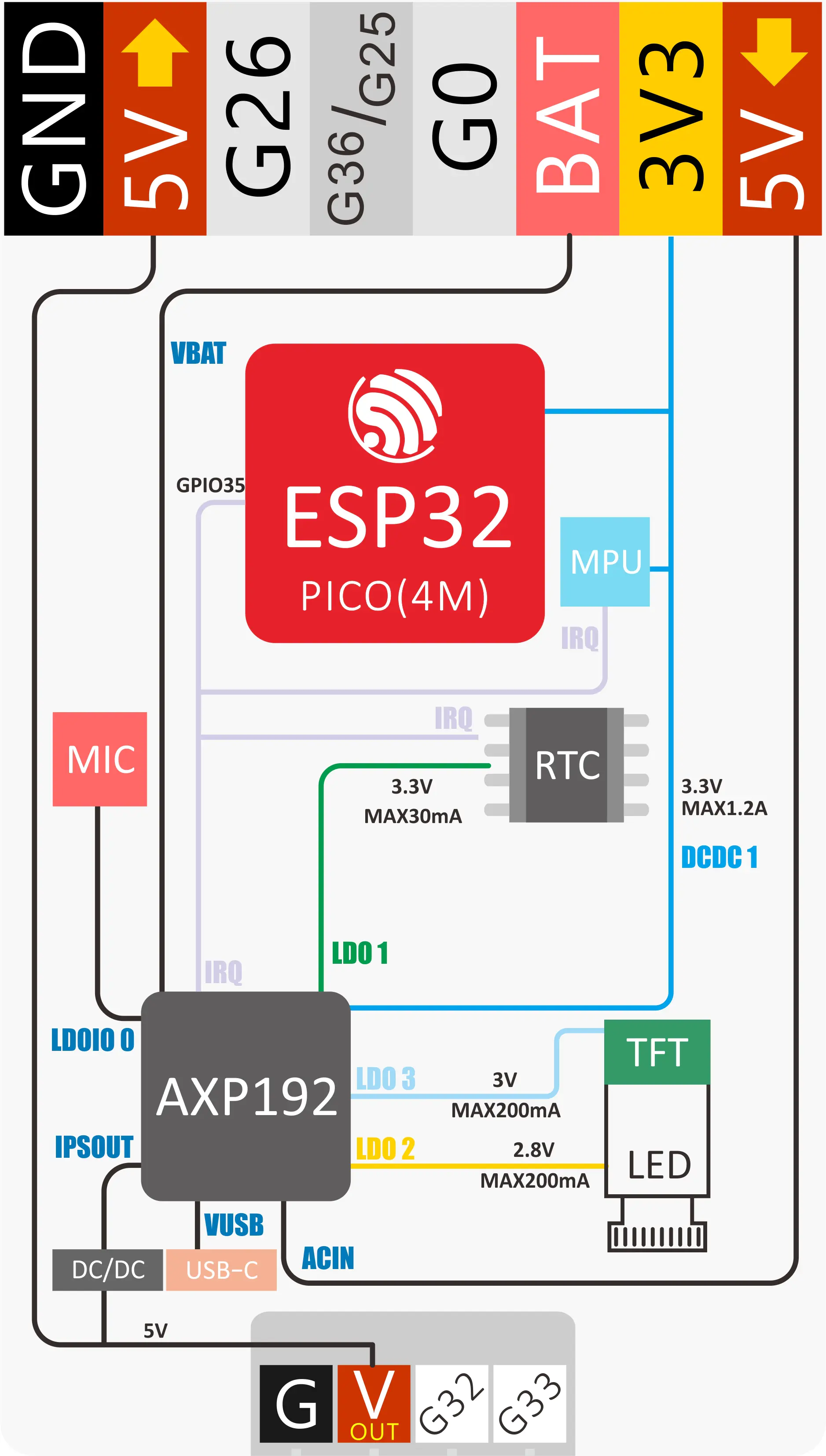

AXP192
| Microphone | RTC | TFT backlight | TFT IC | ESP32/3.3V MPU6886 | 5V GROVE |
|---|---|---|---|---|---|
| LDOio0 | LDO1 | LDO2 | LDO3 | DC-DC1 | IPSOUT |

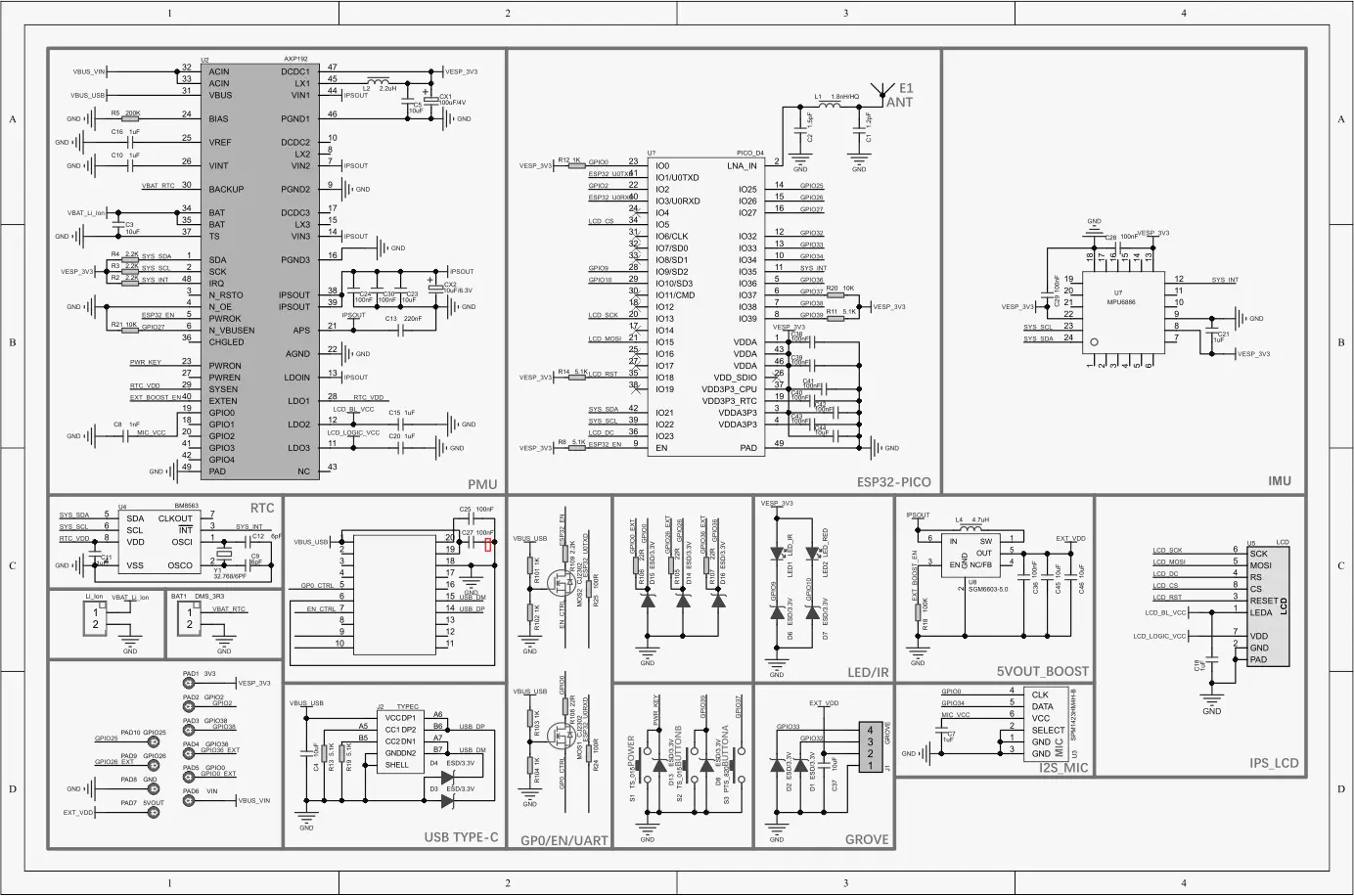

Schema elettrico

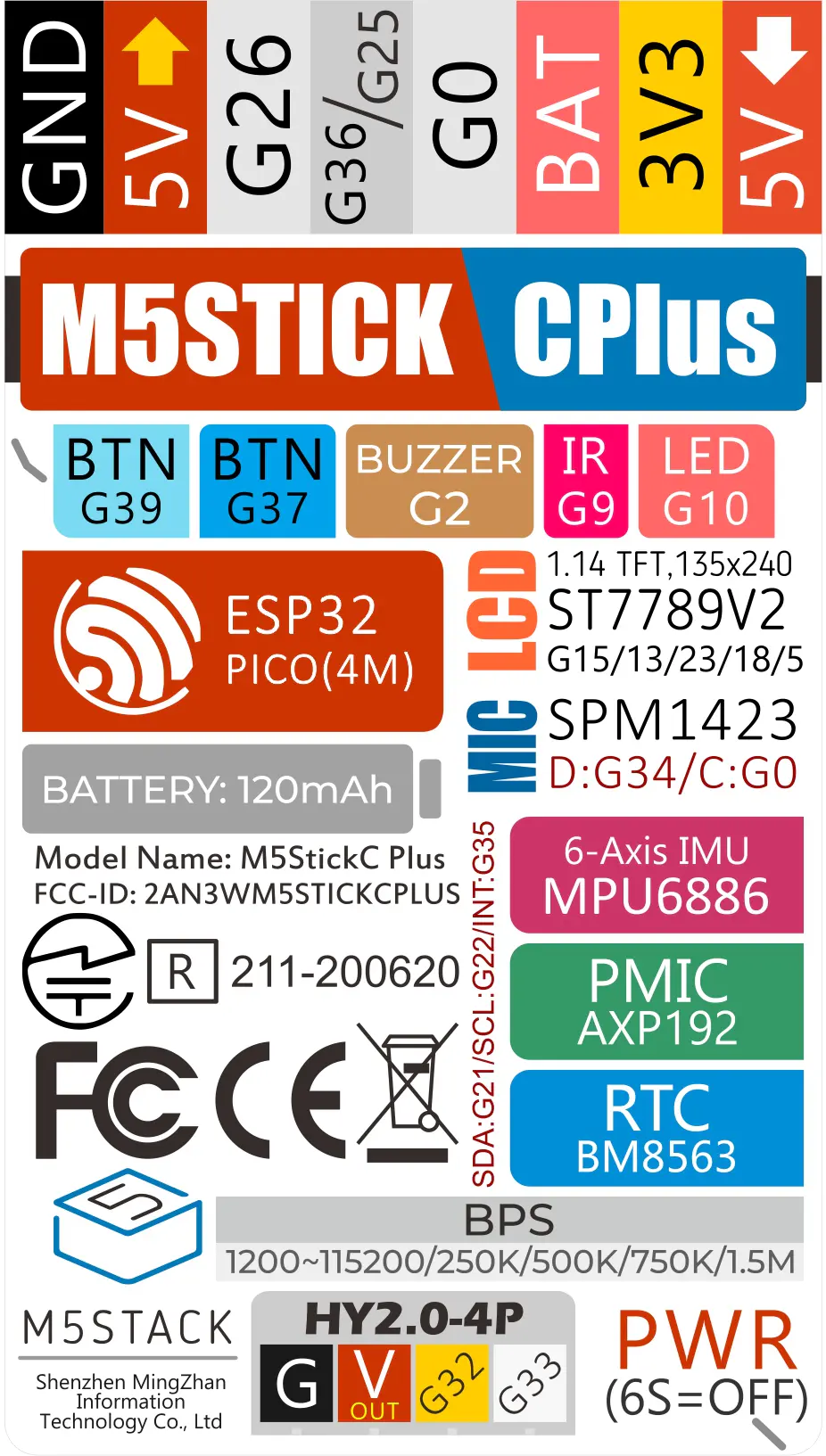

Mappa dei pin
Documentazione dettagliata di M5StickC Plus: https://docs.m5stack.com/en/core/m5stickc_plus.
Arduino IDE Development: https://docs.m5stack.com/en/quick_start/m5stickc_plus/arduino.
M5StickC Arduino API: https://docs.m5stack.com/en/api/stickc/system_m5stickc.
UIFlow Quick Start: https://docs.m5stack.com/en/quick_start/m5stickc_plus/uiflow.
